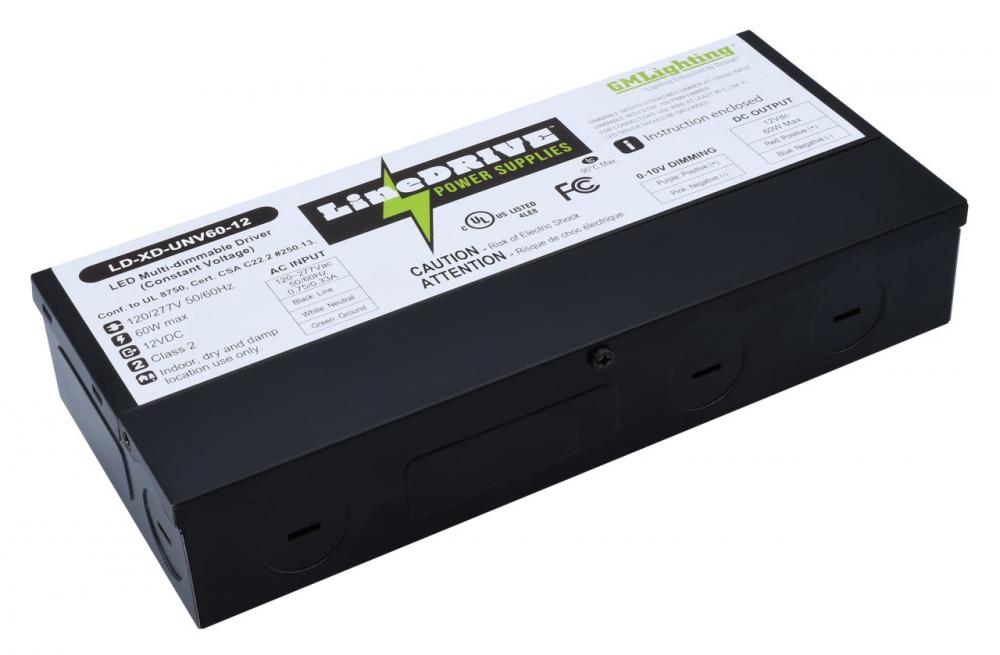

Electronic LED Dimmable Power Supplies (5ZHLA) by GM Lighting LD-XD-UNV60-12

Image may not reflect selected features
No Image
Available
Electronic LED Dimmable Power Supplies
BASE PRICE:
$
110
88
/ / 1
($110.88 / 1)
WAS
$
168
00
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
5ZHLA
Dimensions:
Availability:
  • Manufacturer has 1009 items available.
Description
Details
Downloads
GM's Multi-Dim LineDRIVE power supplies offer stable operation with standard line voltage and low voltage dimmer controls to make installation easy. Compatible with Triac, ELV, MLV and 0-10V dimmers for a wide array of applications. Dimming down to 1%.
Category:
Specialty Items
Subcategory:
Power Supplies
Finish:
Black
Style:
Commercial
Option:
LED
Voltage:
10-99
Location Rating:
Dry Rated
Category:
Power Supply
Option:
LED
Voltage:
24 VDC
Case Quantity:
15
LED:
Yes
Manufactured By:
GM Lighting


Additional Information:
  • Compatible with typical phase dimmers and 0-10V controls
  • Dimmable: Triac, ELV, MLV, 0-10V, PWM dimming (Minimum dimming: 1%)
  • Input: 120V / 277V
  • Integrated wiring compartments with separate line voltage and low voltage sections
  • Line voltage compartment meets NEC code, up to (3) 12 AWG conductors
  • Multi-output driver has 3 output channels for powering several Class 2 loads from one unit
  • Output: Class 2, 24VDC, constant voltage
  • Over-current, over-voltage and over-temperature protection
  • Stable operation, flicker-free dimming
