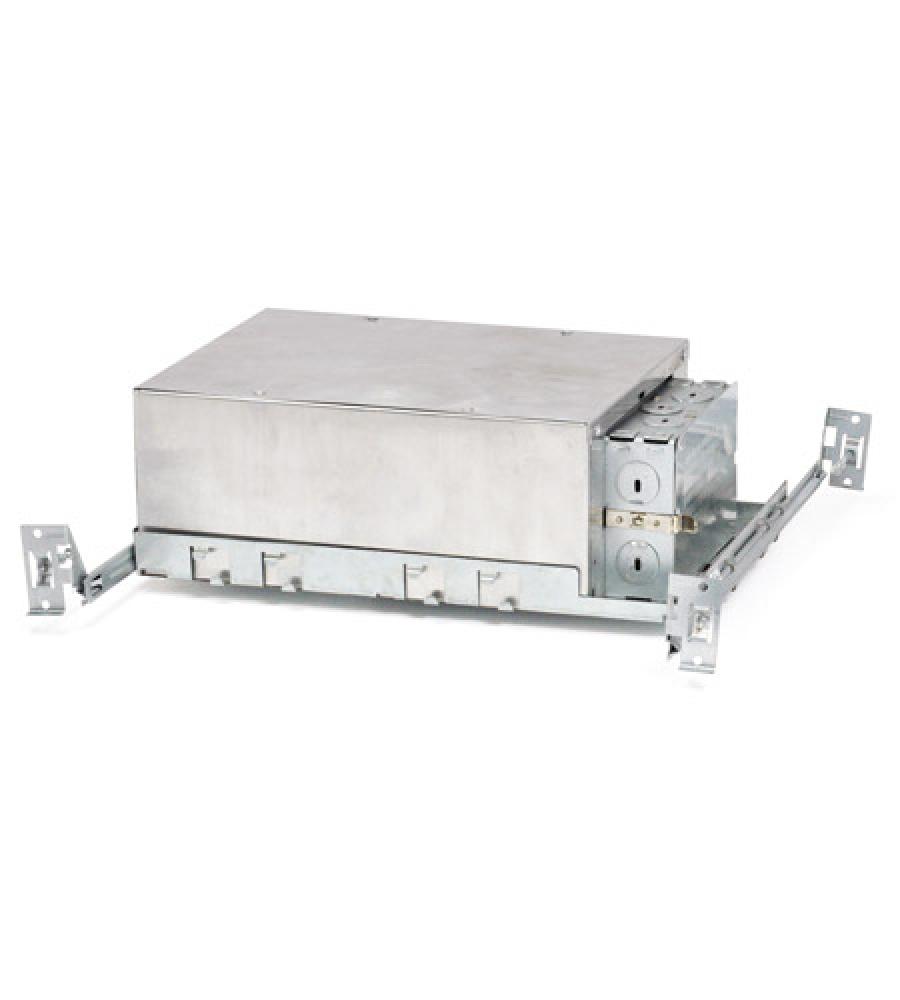

![4" Iolite LED Dedicated IC Airtight New Construction Housing, 13W, 120V input; Triac / ELV](/vendors/104/large/capture.png "4" Iolite LED Dedicated IC Airtight New Construction Housing, 13W, 120V input; Triac / ELV")
Part Number: C861F / Vendor ID #: 104
4" Iolite LED Dedicated IC Airtight New Construction Housing, 13W, 120V input; Triac / ELV
by Nora NHIOICD-48LE3
$72.45
On Sale
Normally $120.75 | You Save $48.30
Item Sales Info
Add To Wishlist
Compare Item
Email
Print
Availability
- Manufacturer has 23 items available.
Dimensions
Height: 4.00"
Width: 7.63"
Info & Guides
Wattage: 13W
Weight: 3
PRODUCT DESCRIPTION
New construction housing for use in insulated ceilings can be in direct contact with thermal
insulation. Rated for use with IOLITE Series fixtures
CONSTRUCTION
Housing
0.040" Aluminum shallow housing constructed of Aluminum with integral bar hangers
Air Flow Restriction
Meets requirments of Air tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM-
283 Air-Tight requirements.
Bar Hangers
Two 13-3/4" to 24-1/2" adjustable bar hangers with captive nails are included on housing.
Bar hangers are parallel to junction box, but can be repositioned 90º perpendicular to junction
box if desired. "L" Shaped bar hanger foot to align to bottom of construction joist. A T-Bar
notch allow for easy installation in a suspended ceiling.
Junction Box
Prewired 25 cubic inch 0.064" thick galvanized steel, with seven 1/2" knockouts, four
Romex® pryouts, and snap on covers. All leads are #18AWG wire, the ground wire is
connected to the bottom, and quick connectors are supplied on all leads. Through branch
circuit wiring, (4-in, 4-out).
New construction housing for use in insulated ceilings can be in direct contact with thermal
insulation. Rated for use with IOLITE Series fixtures
CONSTRUCTION
Housing
0.040" Aluminum shallow housing constructed of Aluminum with integral bar hangers
Air Flow Restriction
Meets requirments of Air tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM-
283 Air-Tight requirements.
Bar Hangers
Two 13-3/4" to 24-1/2" adjustable bar hangers with captive nails are included on housing.
Bar hangers are parallel to junction box, but can be repositioned 90º perpendicular to junction
box if desired. "L" Shaped bar hanger foot to align to bottom of construction joist. A T-Bar
notch allow for easy installation in a suspended ceiling.
Junction Box
Prewired 25 cubic inch 0.064" thick galvanized steel, with seven 1/2" knockouts, four
Romex® pryouts, and snap on covers. All leads are #18AWG wire, the ground wire is
connected to the bottom, and quick connectors are supplied on all leads. Through branch
circuit wiring, (4-in, 4-out).
Category:
Recessed Ltg.
Subcategory:
Recessed Housing New
Finish:
Miscellaneous
Style:
Traditional
Category:
Recessed
Product Line:
LE46
Est. Shipping Wt.:
5
Length:
12
Ship Carton Height:
9
Ship Carton Length:
17
Ship Carton Width:
14
Weight:
3
Contains Battery:
N
Country of Origin:
CHN
DLC Listed:
No
Master Box H:
6
Master Box L:
27
Master Box Qty:
4
Master Box W:
18
Master Box Wt.:
14
Product Family:
4" Iolite Dedicated Housing
Safety Listing:
cULus
Wattage:
13W
5
Manufactured By:
Nora
