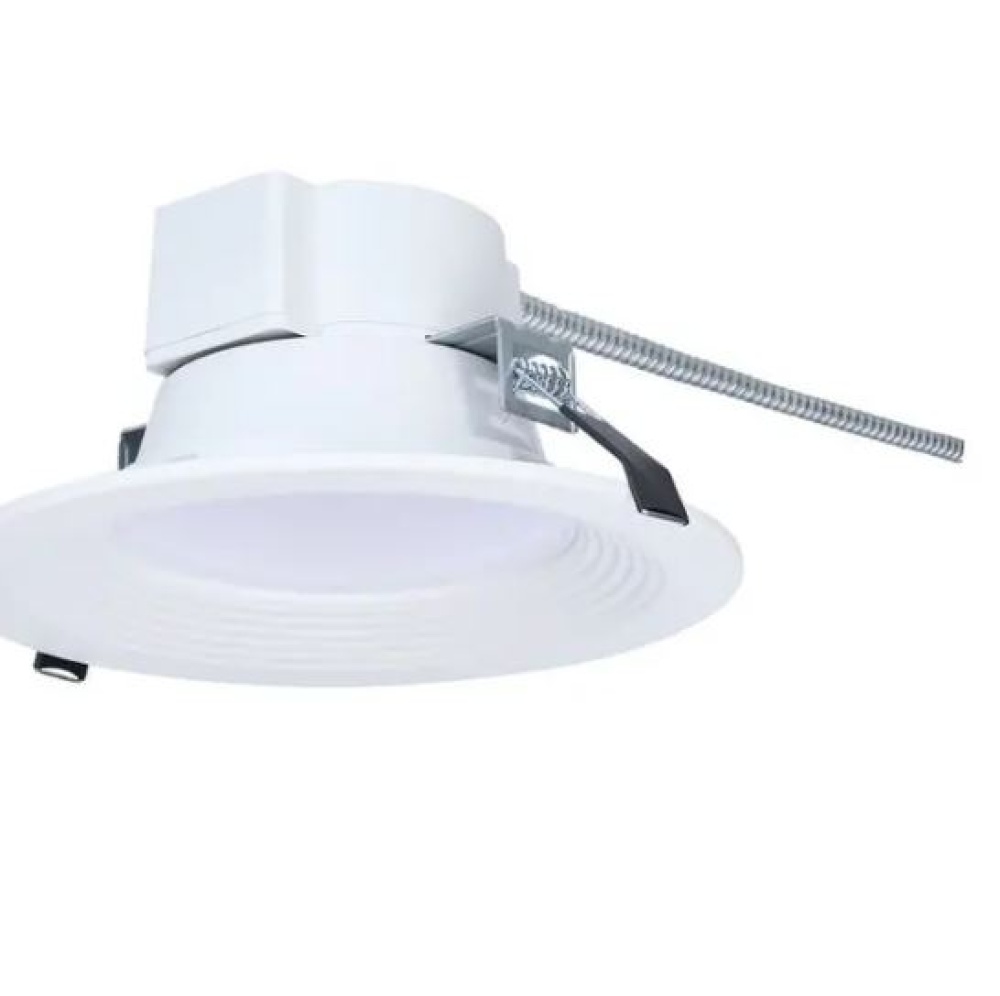

18.5W Field Selectable LED 6-Inch Commercial Downlight; Dual Dimming; Round; 120-347 Volt (AD570) by Nuvo S21601

Image may not reflect selected features
No Image
Available
BASE PRICE:
$
67
22
/ / 1
($67.22 / 1)
WAS
$
101
85
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
AD570
Dimensions:
Height: 3.43"
Width: 7.40"
White
Availability:
  • Manufacturer has 3330 items available.
Recommended Items
Description
Details
Downloads
18.5W Field Selectable LED 6-Inch Commercial Downlight; Dual Dimming; Round; 120-347 Volt
Option:
Energy Star , LED , Prop 65
Category:
Recessed
Sub Category:
Commercial
Style:
Utility
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Warm White to Natural Light
Diameter:
7.4
Dimmable:
Yes-Dimmable
Each Height:
9.06
Each Length:
7.87
Each Width:
3.94
Lumens:
2200L/1800L/1400L
Tariff Code:
9405.42.6000
Warranty:
5-Years
Air Tight:
Yes
Amps:
0.154-0.053/0.131-0.045/0.110-0.038A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Angle:
105
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
California T24 2016 - 2025 JA8 Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Closet Rated:
No
Connection:
Hardwire
Country Of Origin:
Thailand
CRI:
90+
Dimmable Down To:
100 to 10 percent
Dimmable Function:
Phase Cut at 120V/0-10V at 120-347V
Dimming Type:
Dual Dimming
Each Cube:
0.1626
Each Quantity:
1
Efficacy:
118.92 LPW
ES Category:
Downlight Recessed
ES Unique ID:
4481356
FCC Compliant:
Yes
Feature 1:
Field Selectable - 5 CCT and 3 Wattage
Feature 10:
5 Year Warranty
Feature 2:
6-Inch Round, Standard Model
Feature 3:
Dual Dimming
Feature 4:
Regress Baffle Design for Reduced Glare
Feature 5:
18 Inch Electrical Whip
Feature 6:
Integrated LED Driver
Feature 7:
90 CRI
Feature 8:
Damp location rated
Feature 9:
50,000 Hour Functional Life
Finish Family:
White
Fixture shape:
Round
Flr Equiv:
32W
Has Camera:
No
Has Driver:
Yes
Has Emergency Battery:
No
IC Rated:
Yes
Incandescent Equivalent:
100W
Indoor Outdoor:
Indoor
IOT Enabled:
No
IP Rating:
IP20
JA8 Compliant:
Yes
Lens Material:
Polycarbonate (PC)
Long Description:
SATCO NUVO's Plus Series LED Commercial Downlight, S21601, delivers exceptional performance and versatility for today's remodel or new construction commercial environments. This 6-inch round fixture features field-selectable wattage and CCT setting
Material:
Aluminum
Mounting Diameter:
6.02
Mounting Height:
3.29
Mounting Procedure:
Ceiling
NSF Approved:
No
Operating Frequency:
60Hz
Operating Temp:
-20C (-4F) to +40C (+104F)
Order In Multiples Of:
1
Pack Type:
Color Box
Photocell:
No
Power Factor:
>0.9
Quantity In Pack:
1
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO's Plus Series LED Commercial Downlights deliver exceptional performance and versatility for today's remodel or new construction commercial environments. Offered in 4, 6, 8 and 10-inch round or square configurations, these downlights feat
Safety Listing:
cETLus - Listed
SDS class:
LED_Fixture
Short Description:
18.5W/CDL/6/120-347/FS/RND/DD
Sloped Ceiling Compatible:
No
Specification Notes:
Default CCT setting is 3000K. Default wattage setting is 18.5W.
Temperature (CCT):
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant:
Exempt
Title 24 Compliant:
Yes
Total Harmonic Distortion:
<30%
Trim Color:
White
Trim Material:
Aluminum
Up Down Installation:
Down
Wattage Selectable:
Yes
Weight Lb.:
1.09
Manufactured By:
Nuvo
