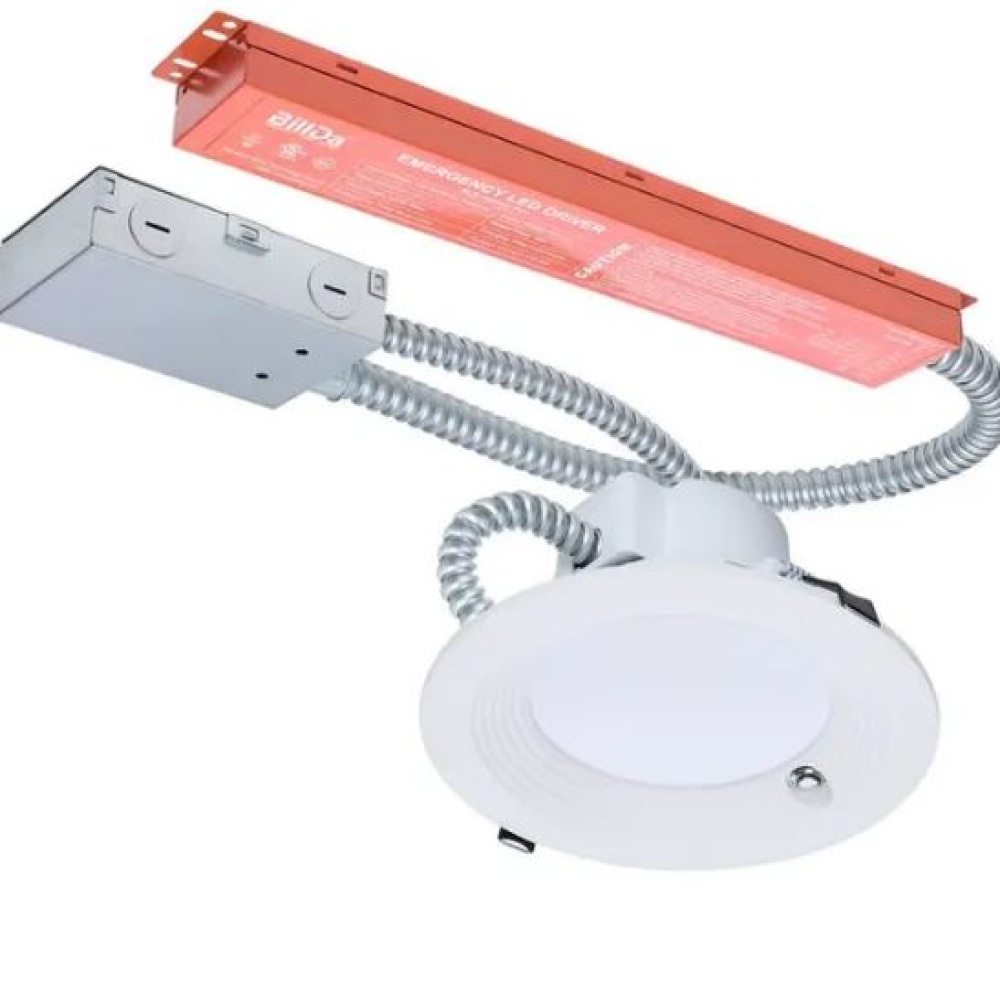

20.5W Field Selectable LED 6-Inch Commercial Downlight; Dual Dimming; Integrated Emergency Driver; (AD574) by Nuvo S21605

Image may not reflect selected features
No Image
Available
BASE PRICE:
$
265
22
/ / 1
($265.22 / 1)
WAS
$
401
85
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
AD574
Dimensions:
Height: 3.43"
Width: 7.40"
White
Availability:
  • Manufacturer may be Out Of Stock.
Recommended Items
Description
Details
Downloads
20.5W Field Selectable LED 6-Inch Commercial Downlight; Dual Dimming; Integrated Emergency Driver; Round; 120-347 Volt
Option:
Energy Star , LED , Prop 65
Category:
Recessed
Sub Category:
Commercial
Style:
Utility
Additional Info:
90 Minute EM Battery Runtime
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Warm White to Natural Light
Diameter:
7.4
Dimmable:
Yes-Dimmable
Each Height:
16.85
Each Length:
8.66
Each Width:
3.94
Lumens:
2200L/1800L/1400L
Tariff Code:
9405.42.6000
Warranty:
5-Years
Air Tight:
Yes
Amps:
0.154-0.053/0.131-0.045/0.110-0.038A
ANSI Base:
Integrated
BAA Compliant:
No
Battery Chemistry:
Lithium-ion (Li-ion)
Beam Angle:
105
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
California T24 2016 - 2025 JA8 Listed;T20 SBCS Listed under Billda Item BLD-HMXXD-YYY
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Closet Rated:
No
Connection:
Hardwire
Country Of Origin:
Thailand
CRI:
90+
Dimmable Down To:
100 to 10 percent
Dimmable Function:
Phase Cut at 120V/0-10V at 120-347V
Dimming Type:
Dual Dimming
Each Cube:
0.3327
Each Quantity:
1
Efficacy:
107.32 LPW
ES Category:
Downlight Recessed
ES Unique ID:
4510059
FCC Compliant:
Yes
Feature 1:
Field Selectable - 5 CCT and 3 Wattage
Feature 10:
5 Year Warranty
Feature 2:
6-Inch Round, Emergency Battery Backup Model
Feature 3:
Dual Dimming
Feature 4:
Regress Baffle Design for Reduced Glare
Feature 5:
18 Inch Electrical Whip
Feature 6:
EM Model includes self-diagnostic emergency feature
Feature 7:
90 CRI
Feature 8:
Damp location rated
Feature 9:
50,000 Hour Functional Life
Finish Family:
White
Fixture shape:
Round
Flr Equiv:
32W
Has Camera:
No
Has Driver:
Yes
Has Emergency Battery:
Yes
IC Rated:
Yes
Incandescent Equivalent:
100W
Indoor Outdoor:
Indoor
IOT Enabled:
No
IP Rating:
IP20
JA8 Compliant:
Yes
Lens Material:
Polycarbonate (PC)
Long Description:
SATCO NUVO's Plus Series LED Commercial Downlight, S21605, with Emergency Battery Backup delivers exceptional performance and versatility for today's remodel or new construction commercial environments. This 6-inch round fixture features field-sele
Material:
Aluminum
Mounting Diameter:
6.02
Mounting Height:
3.29
Mounting Procedure:
Ceiling
NSF Approved:
No
Operating Frequency:
60Hz
Operating Temp:
+5C (+41F) to +40C (+104F)
Order In Multiples Of:
1
Pack Type:
Color Box
Photocell:
No
Power Factor:
>0.9
Quantity In Pack:
1
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO's Plus Series LED Commercial Downlights deliver exceptional performance and versatility for today's remodel or new construction commercial environments. Offered in 4, 6, 8 and 10-inch round or square configurations, these downlights feat
Safety Listing:
cETLus - Listed
SDS class:
Lithium_Ion_Battery
Short Description:
20.5W/CDL/6/120-347/FS/RD/DD/E
Sloped Ceiling Compatible:
No
Specification Notes:
Default CCT setting is 3000K. Default wattage setting is 20.5W.
Temperature (CCT):
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant:
Yes
Title 24 Compliant:
Yes
Total Harmonic Distortion:
<30%
Trim Color:
White
Trim Material:
Aluminum
Up Down Installation:
Down
Wattage Selectable:
Yes
Weight Lb.:
3.3
Manufactured By:
Nuvo
