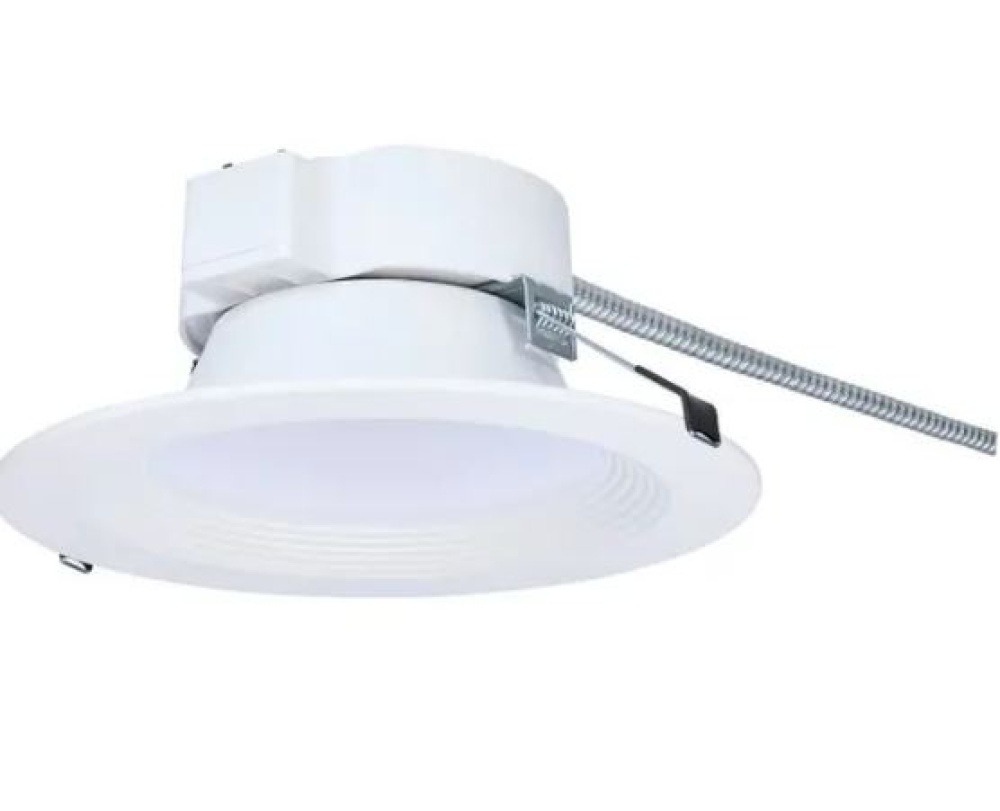

25.5W Field Selectable LED 8-Inch Commercial Downlight; Dual Dimming; Round; 120-347 Volt (AD571) by Nuvo S21602

Image may not reflect selected features
No Image
Available
BASE PRICE:
$
98
90
/ / 1
($98.90 / 1)
WAS
$
149
85
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
AD571

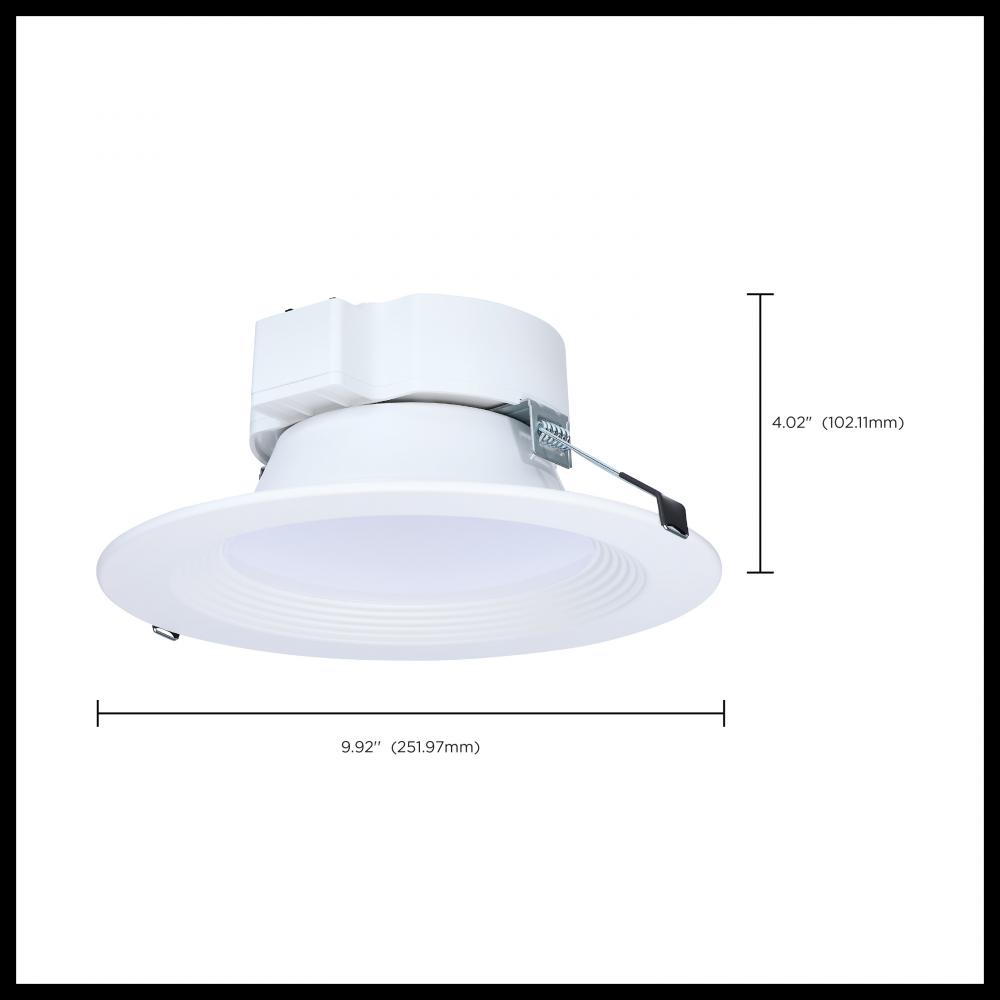

Dimensions:
Height: 4.02"
Width: 9.76"
White
Availability:
  • Manufacturer has 2348 items available.
Recommended Items
Description
Details
Downloads
25.5W Field Selectable LED 8-Inch Commercial Downlight; Dual Dimming; Round; 120-347 Volt
Option:
Energy Star , LED , Prop 65
Category:
Recessed
Sub Category:
Commercial
Style:
Utility
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Warm White to Natural Light
Diameter:
9.76
Dimmable:
Yes-Dimmable
Each Height:
10.43
Each Length:
10.43
Each Width:
4.13
Lumens:
3200L/2900L/2200L
Tariff Code:
9405.42.6000
Warranty:
5-Years
Air Tight:
Yes
Amps:
0.213-0.073/0.188-0.065/0.143-0.050A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Angle:
100
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
California T24 2016 - 2025 JA8 Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Closet Rated:
No
Connection:
Hardwire
Country Of Origin:
Thailand
CRI:
90+
Dimmable Down To:
100 to 10 percent
Dimmable Function:
Phase Cut at 120V/0-10V at 120-347V
Dimming Type:
Dual Dimming
Each Cube:
0.26
Each Quantity:
1
Efficacy:
125.49 LPW
ES Category:
Downlight Recessed
ES Unique ID:
4481358
FCC Compliant:
Yes

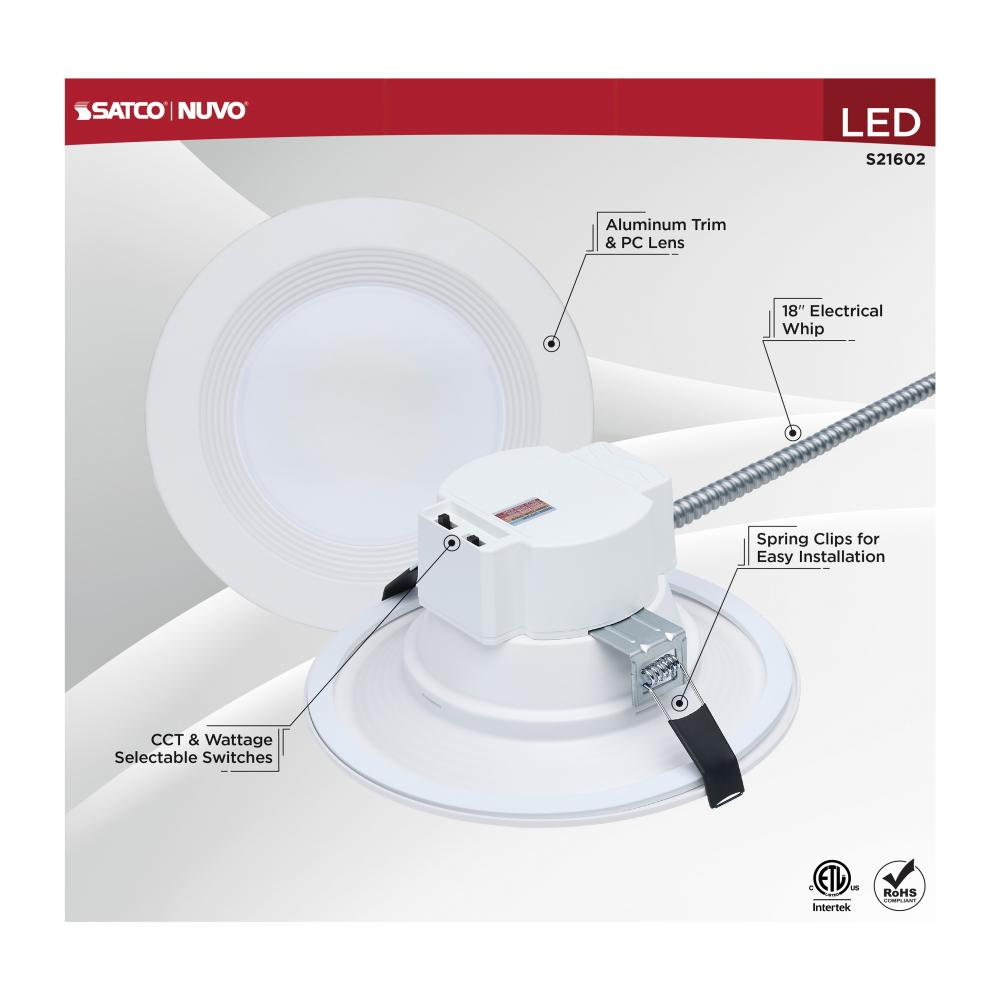

Feature 1:

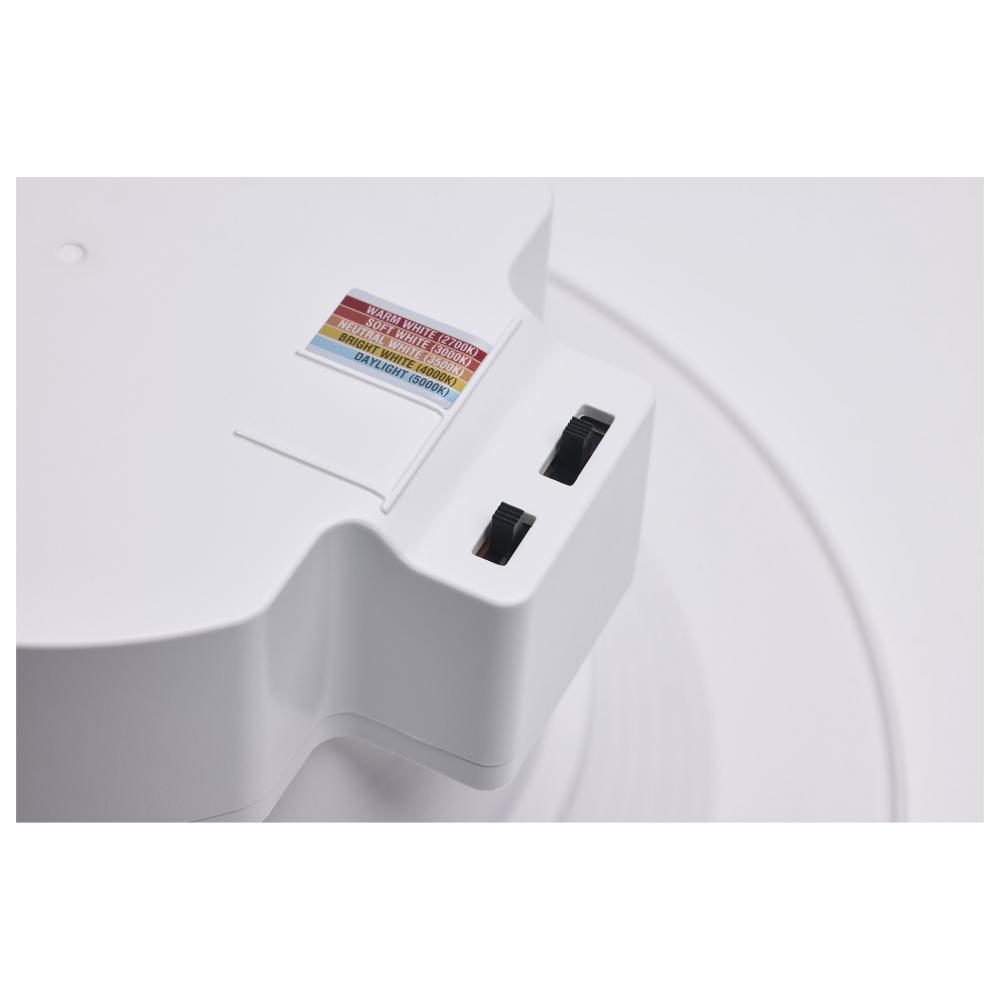

Field Selectable - 5 CCT and 3 Wattage
Feature 10:
5 Year Warranty
Feature 2:
8-Inch Round, Standard Model
Feature 3:
Dual Dimming
Feature 4:

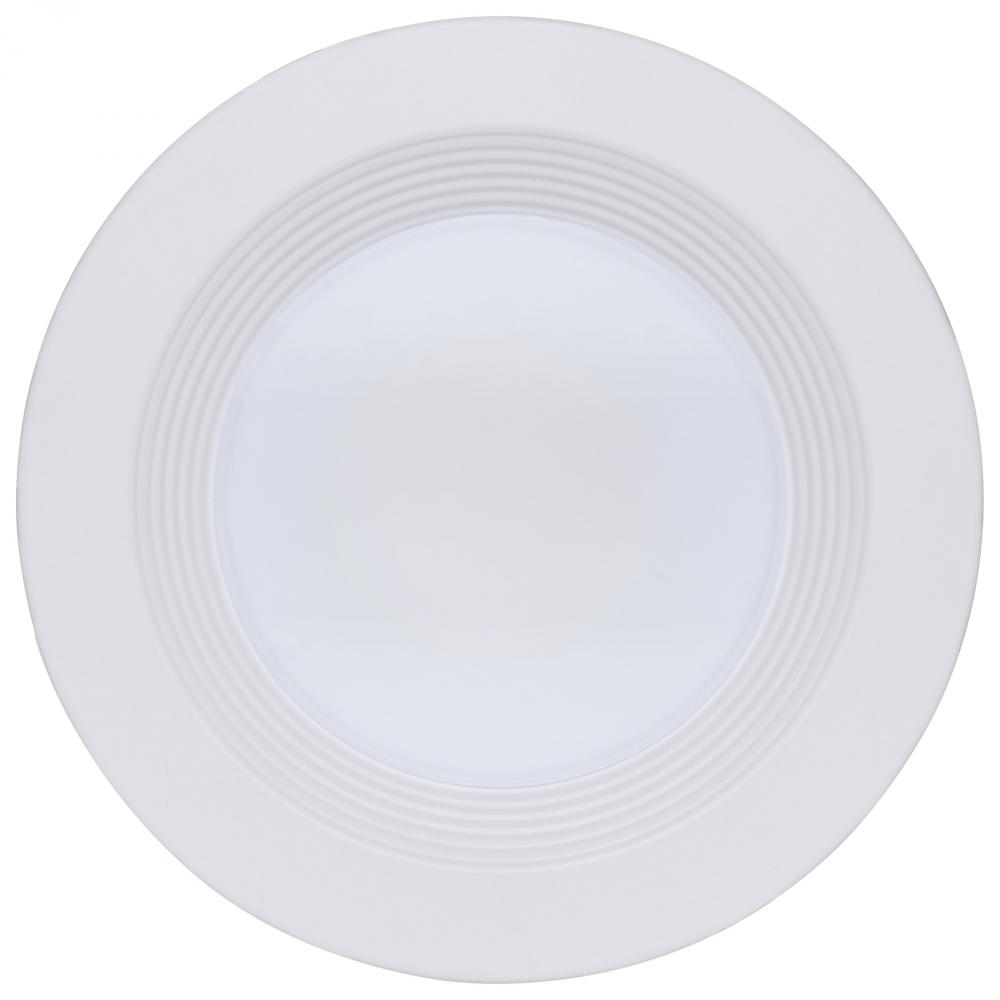

Regress Baffle Design for Reduced Glare
Feature 5:

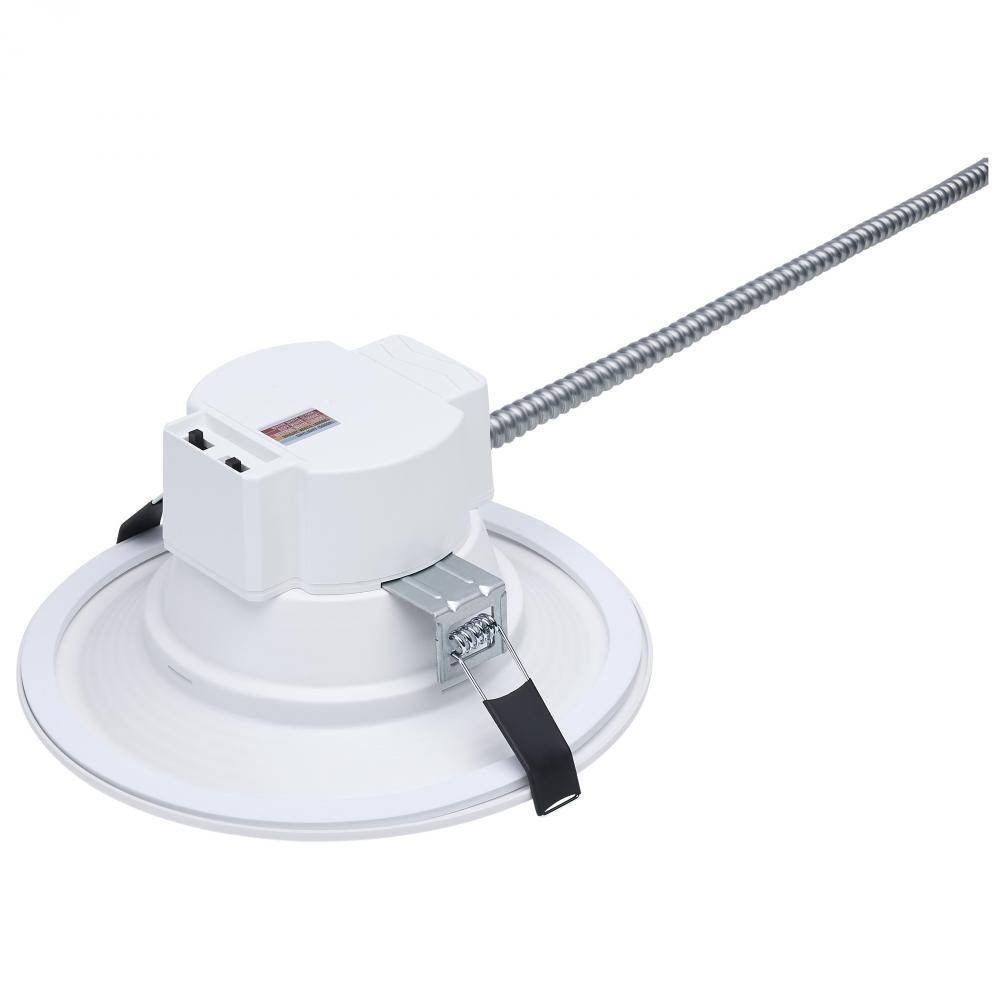

18 Inch Electrical Whip
Feature 6:
Integrated LED Driver
Feature 7:
90 CRI
Feature 8:
Damp location rated
Feature 9:
50,000 Hour Functional Life
Finish Family:
White
Fixture shape:
Round
Flr Equiv:
2 x 26W CFL
Has Camera:
No
Has Driver:
Yes
Has Emergency Battery:
No
IC Rated:
Yes
Incandescent Equivalent:
125W
Indoor Outdoor:
Indoor
IOT Enabled:
No
IP Rating:
IP20
JA8 Compliant:
Yes
Lens Material:
Polycarbonate (PC)
Long Description:
SATCO NUVO's Plus Series LED Commercial Downlight, S21602, delivers exceptional performance and versatility for today's remodel or new construction commercial environments. This 8-inch round fixture features field-selectable wattage and CCT setting
Material:
Aluminum
Mounting Diameter:
7.99
Mounting Height:
3.8
Mounting Procedure:
Ceiling
NSF Approved:
No
Operating Frequency:
60Hz
Operating Temp:
-20C (-4F) to +40C (+104F)
Order In Multiples Of:
1
Pack Type:
Color Box
Photocell:
No
Power Factor:
>0.9
Quantity In Pack:
1
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO's Plus Series LED Commercial Downlights deliver exceptional performance and versatility for today's remodel or new construction commercial environments. Offered in 4, 6, 8 and 10-inch round or square configurations, these downlights feat
Safety Listing:
cETLus - Listed
SDS class:
LED_Fixture
Short Description:
25.5W/CDL/8/120-347/FS/RND/DD
Sloped Ceiling Compatible:
No
Specification Notes:
Default CCT setting is 3000K. Default wattage setting is 25.5W.
Temperature (CCT):
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant:
Exempt
Title 24 Compliant:
Yes
Total Harmonic Distortion:
<30%
Trim Color:
White
Trim Material:
Aluminum
Up Down Installation:
Down
Wattage Selectable:
Yes
Weight Lb.:
1.71
Manufactured By:
Nuvo
