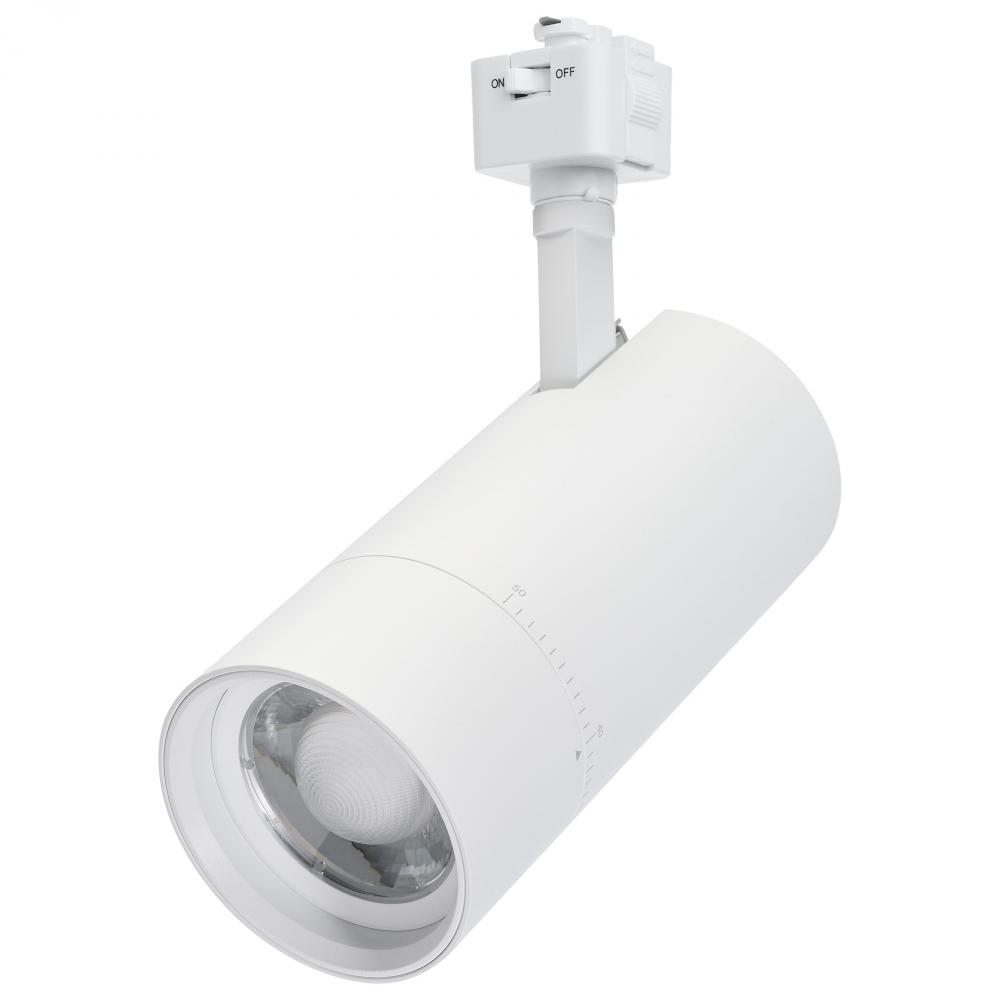

30 Watt LED Track Head; J-Style; 20 to 50 Degree Adjustable Beam Spread; CCT Selectable; Matte White (A98HR) by Nuvo TH5041

Image may not reflect selected features
No Image
Available
30 Watt LED Track Head; J-Style; 20 to 50 Degree Adjustable Beam Spread; CCT Selectable; Matte White
additional image
BASE PRICE:
$
101
99
/ / 1
($101.99 / 1)
WAS
$
153
00
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
A98HR
Dimensions:
Height: 6.63"
Width: 3.14"
Matte White
Availability:
  • Manufacturer has 490 items available.
Recommended Items
Description
Details
Downloads
30 Watt LED Track Head; J-Style; 20 to 50 Degree Adjustable Beam Spread; CCT Selectable; Matte White Finish
Category:
Track Ltg.
Subcategory:
Track Heads
Option:
LED , Prop 65
Category:
Track Lighting
Sub Category:
Track Head
Style:
Contemporary
Bulb Volts1:
120V
Avg Rated Hours:
30000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Warm White to Natural Light
Dimmable:
Yes-Dimmable
Each Height:
9.449999999999999
Each Length:
3.78
Each Width:
3.39
Length:
6.94
Lumens:
2100L
Tariff Code:
9405.11.6020
Warranty:
3-Years
Amps:
0.270A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Angle:
20-50
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
California T24 2016 - 2025 JA8 Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Country Of Origin:
Vietnam
CRI:
90+
Dimmable Function:
120V only
Dimming Type:
Triac
Each Cube:
0.0701
Each Quantity:
1
Efficacy:
70.00 LPW
FCC Compliant:
Yes
Feature 1:
J-Style Single and 2 Circuit Track Compatible
Feature 2:
Beam Adjustable from 20 to 50 Degrees
Feature 3:
90 CRI High Quality Light
Feature 4:
Matte White Finish
Feature 5:
5 CCT Selectable
Feature 6:
Dimmable
Feature 7:
T24 Compliant
Feature 8:
30,000 Life Hours
Feature 9:
3 Year Warranty
Finish Family:
White
Has Camera:
No
Has Emergency Battery:
No
Incandescent Equivalent:
150W
Indoor Outdoor:
Indoor
IOT Enabled:
No
JA8 Compliant:
Yes
Lens Finish:
Clear
Lens Material:
Poly methyl methacrylate (PMMA)
Long Description:
SATCO NUVO's TH5041 is a beam adjustable, matte white, 30 watt LED track head designed for compatibility with both Single Circuit and 2 Circuit J-Style track systems, enhancing its flexibility across various installation environments. This fixture feat
Material:
Aluminum / Steel
Mounting Procedure:
Track
Operating Frequency:
60Hz
Operating Temp:
-20C (-4F) to +40C (+104F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
>0.9
Quantity In Pack:
1
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO's beam adjustable, CCT selectable LED track head fixtures are now compatible with both Single Circuit and 2 Circuit J-Style track systems, expanding their versatility for a wide range of applications. J-Style track, a popular choice in resid
Safety Listing:
cETLus - Listed
Short Description:
30W BEAM ADJ TRK HEAD J-STYLE
Temperature (CCT):
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant:
Exempt
Title 24 Compliant:
Yes
Track Head Style:
J-Style
Wattage Selectable:
No
Weight Lb.:
2.04
Manufactured By:
Nuvo
