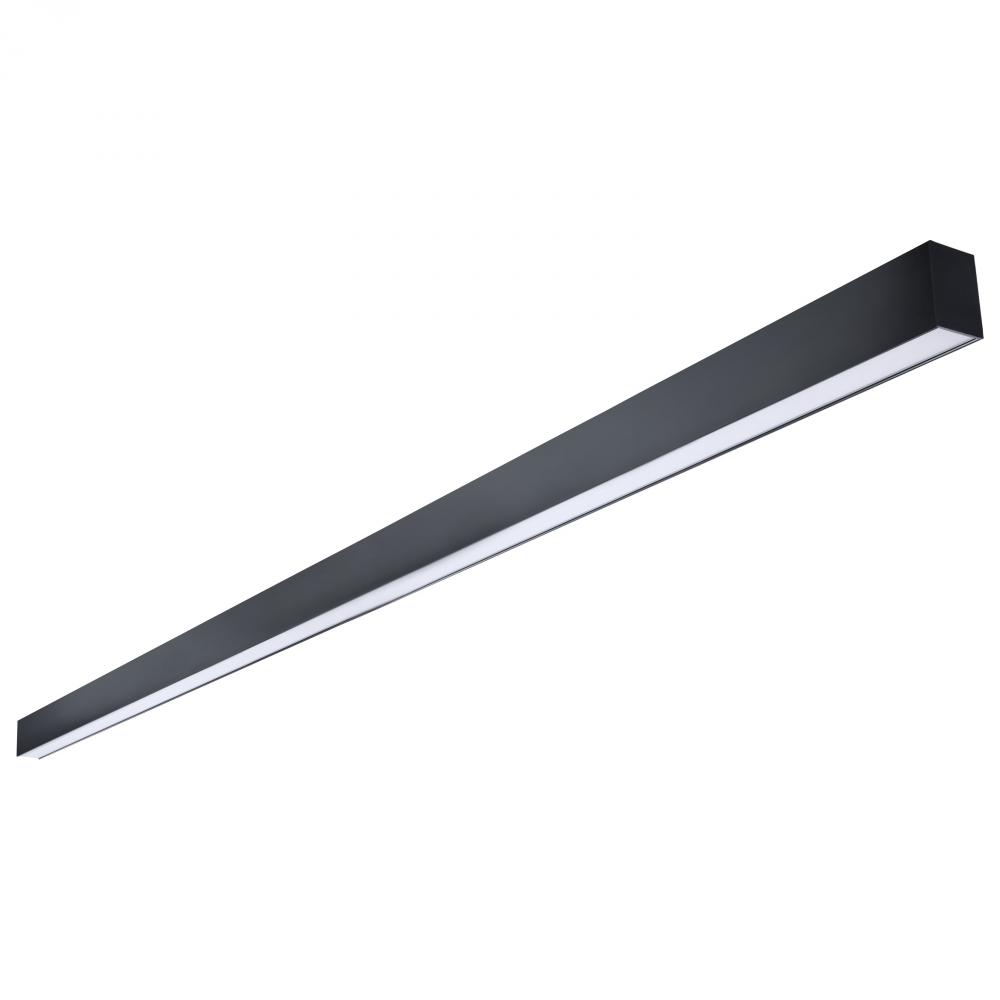

Momentum; 8 Foot LED Connectable Linear Strip; Up and Down Selectable; Black Finish (AD4AN) by Nuvo 65/1282

Image may not reflect selected features
No Image
Available
Momentum; 8 Foot LED Connectable Linear Strip; Up and Down Selectable; Black Finish
additional image
BASE PRICE:
$
374
22
/ / 1
($374.22 / 1)
WAS
$
567
00
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
AD4AN
Dimensions:
Height: 3.40"
Width: 2.36"
Black
Availability:
  • Manufacturer availability unavailable.
Recommended Items
Description
Details
Downloads
Momentum; 8 Foot LED Connectable Linear Strip; Up and Down Selectable; Black Finish
Option:
LED , Prop 65
Category:
Linear Strip
Sub Category:
Strip Fixture
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Soft White to Natural Light
Dimmable:
Yes-Dimmable
Each Height:
3.66
Each Length:
94.29
Each Width:
4.72
Length:
92.76
Lumens:
6600L/8800L/11000L
Tariff Code:
9405.11.6010
Warranty:
5-Years
Amps:
0.500-0.173/0.667-0.231/0.833-0.288A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Angle:
120
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Country Of Origin:
Thailand
CRI:
80+
Dimmable Down To:
100 to 10 percent
Dimmable Function:
0-10V
DLC Classification:
Standard
DLC Primary Use:
Direct Linear Ambient Luminaires
Each Cube:
0.9426
Each Quantity:
1
Efficacy:
110.00 LPW
FCC Compliant:
Yes
Feature 1:
8-foot
Feature 2:
Black Finish
Feature 3:
Field Selectable; Wattage and CCT
Feature 4:
Compatible with L, T, X, and Y Connectors
Feature 5:
Mounting Options Include: Surface, Recessed, Suspension and Wall Mounting
Feature 6:
Compatible with Select PIR Sensors
Feature 7:
Aluminum Housing
Feature 8:
Durable Polycarbonate Lens
Finish Family:
Black
Fixture shape:
Linear
Flicker Free:
Yes
Has Camera:
No
Has Emergency Battery:
No
Indoor Outdoor:
Indoor
IOT Enabled:
No
JA8 Compliant:
No
Long Description:
The SATCO/NUVO Momentum 65-1282 delivers a seamless, customizable lighting solution engineered for architects, designers, and installers who need both precision and flexibility in commercial, hospitality, retail, institutional, and modern office environmen
Material:
Steel
Mounting Procedure:
Ceiling/Wall
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +45C (+113F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
0.93
Quantity In Pack:
1
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
The SATCO/NUVO Momentum system delivers a seamless, customizable lighting solution engineered for architects, designers, and installers who need both precision and flexibility in commercial, hospitality, retail, institutional, and modern office environment
Safety Listing:
cETLus
Short Description:
8' LED CONNECTABLE LINEAR
Specification Notes:
Max Wattage when connected at 120V: 700W; Max Wattage when connected at 277V: 1400W; Max Wattage when connected at 347V: 1700W
Temperature (CCT):
3000K/4000K/5000K
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Total Harmonic Distortion:
10.3%
Wattage Selectable:
Yes
Weight Lb.:
12.35
Manufactured By:
Nuvo
