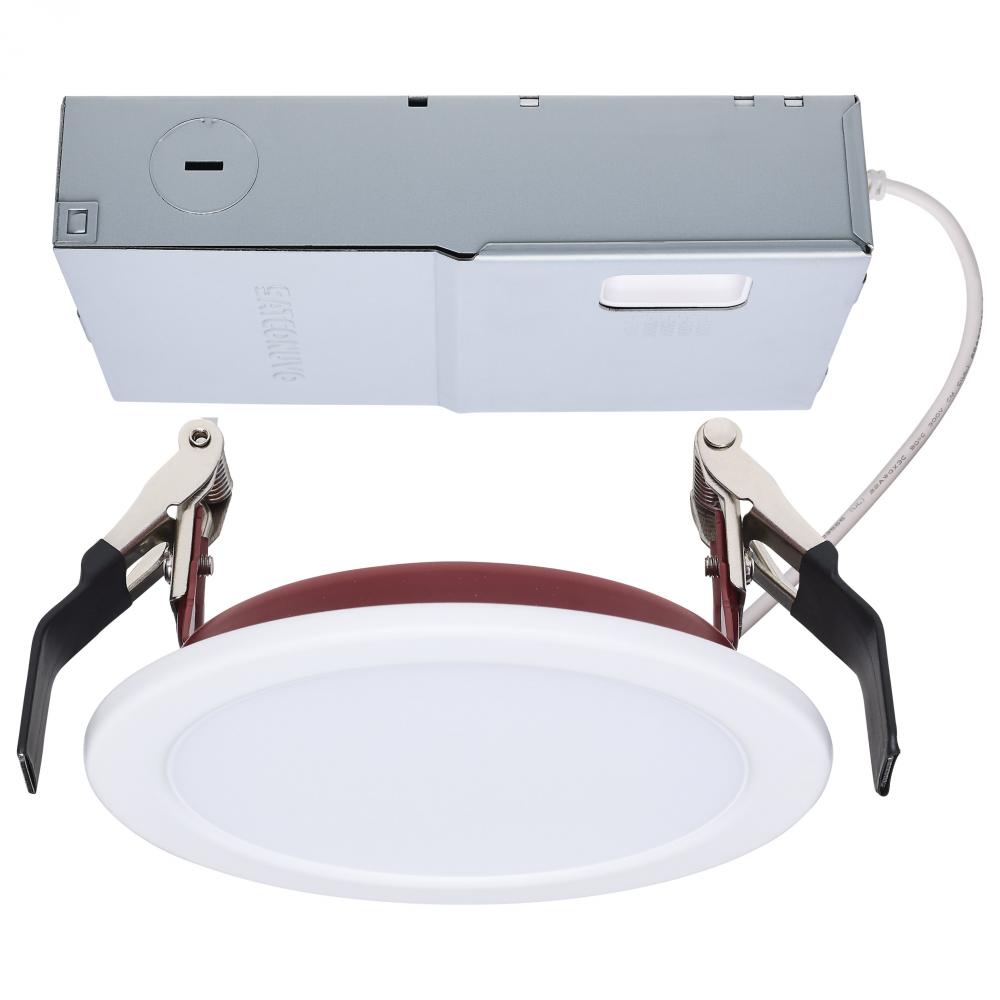

10 Watt LED; Fire Rated 4 Inch; Direct Wire Slim Fit Flat Face Downlight; Round Shape; White Finish; (X9MVQ) by Satco Products Inc. S11868R1

Image may not reflect selected features
No Image
Available
10 Watt LED; Fire Rated 4 Inch; Direct Wire Slim Fit Flat Face Downlight; Round Shape; White Finish;
additional image
BASE PRICE:
$
36
93
/ / 1
($36.93 / 1)
WAS
$
55
95
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
X9MVQ
Dimensions:
Height: 0.88"
Width: 4.74"
White / Red
Availability:
  • Manufacturer may be Out Of Stock.
Recommended Items
Description
Details
Downloads
10 Watt LED; Fire Rated 4 Inch; Direct Wire Slim Fit Flat Face Downlight; Round Shape; White Finish; CCT Selectable; 120-277 Volts; 0-10V Dimmable
Option:
Energy Star , LED , Prop 65
Category:
Recessed
Sub Category:
Direct Wire
Style:
Specialty
Bulb Hours:
50000
Bulb Kelvin:
Warm White to Natural Light
Bulb Shape:
Integrated LED
Bulb Type:
LED
Diameter:
4.74
Dimmable:
Yes-Dimmable
Harmonized Codes:
9405.11.6010
Lumens:
820L
Ship Carton Height:
7.48
Ship Carton Length:
5.83
Ship Carton Width:
3.7
Warranty:
5-Years
Air Tight:
Yes
Amps:
0.083-0.036A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Spread:
110
CA Prop-65:
Lead
Carton Cubic Feet:
0.0934
Cartons Per Unit:
1
CCT Selectable:
Yes
CEC:
California T24 2016 - 2025 JA8 Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Ceiling Aperture:
3.875 in. Cutout
Closet Rated:
Yes
Connection:
Hardwire
Country Of Origin:
Cambodia
CRI:
90+
Dark Sky Rated:
No
Dimmable Down To:
100 to 10 percent
Dimmable Function:
0-10V Dimming
Efficacy:
82.00 LPW
ES Category:
Downlight Recessed
ES Unique ID:
4479604
FCC Compliant:
Yes
Feature 1:
Fire rated up to 2-hours
Feature 10:
5 Year Warranty
Feature 2:
Red painted backplate for easy identification
Feature 3:
5 CCT Selectable
Feature 4:
90 CRI High Quality Illumination
Feature 5:
4" Flat Lens Model
Feature 6:
120–277 Volts with 0–10V Dimming
Feature 7:
Wet location rated
Feature 8:
IC Rated and AirTight
Feature 9:
50,000 Hour Functional Life
Finish Family:
White
Fixture shape:
Round
Flicker Free:
Yes
Has Emergency Battery:
No
IC Rated:
Yes
Incandescent Equivalent:
60W
Indoor Outdoor:
Indoor
JA8 Compliant:
Yes
Lens Finish:
Frosted
Lens Material:
Polycarbonate (PC)
Long Description:
SATCO NUVO'S S11868R1 Fire Rated Recessed Downlight is engineered for fire-resistant ceiling construction and certified for 2-hour fire protection when installed in most floor-ceiling assemblies, including UL Designs L505, L511, L536, L538, L541, L556,
Material:
Steel
Max Drywall Thickness:
1.181 in.
Mounting Procedure:
Ceiling
NSF Approved:
No
Operating Frequency:
50/60Hz
Operating Temprature:
-20C (-4F) to +40C (+104F)
Order In Multiples Of:
1
Pack Type:
Color Box
Power Factor:
>0.9
Quantity In Pack:
1
Rated For Vapor Tight Fixture:
No
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO'S Fire Rated Recessed Downlights are engineered for use in fire-resistant ceiling construction and are certified for 2-hour fire protection when installed in most floor-ceiling assemblies, including UL Designs L505, L511, L536, L538, L541, L
Safety Listing:
cULus - Certified
SDS class:
LED_Fixture
Short Description:
10WLED/4/CFR/CCT/SLF/RD/FL/RND
Sloped Ceiling Compatible:
No
Temperature (CCT):
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant:
Exempt
Title 24 Compliant:
Yes
Total Harmonic Distortion:
<20%
Trim Color:
White
Trim Material:
Steel
Wattage Selectable:
No
Weight Lb.:
1.49
Manufactured By:
Satco Products Inc.
