Part Number: X9MVL / Vendor ID #: 27

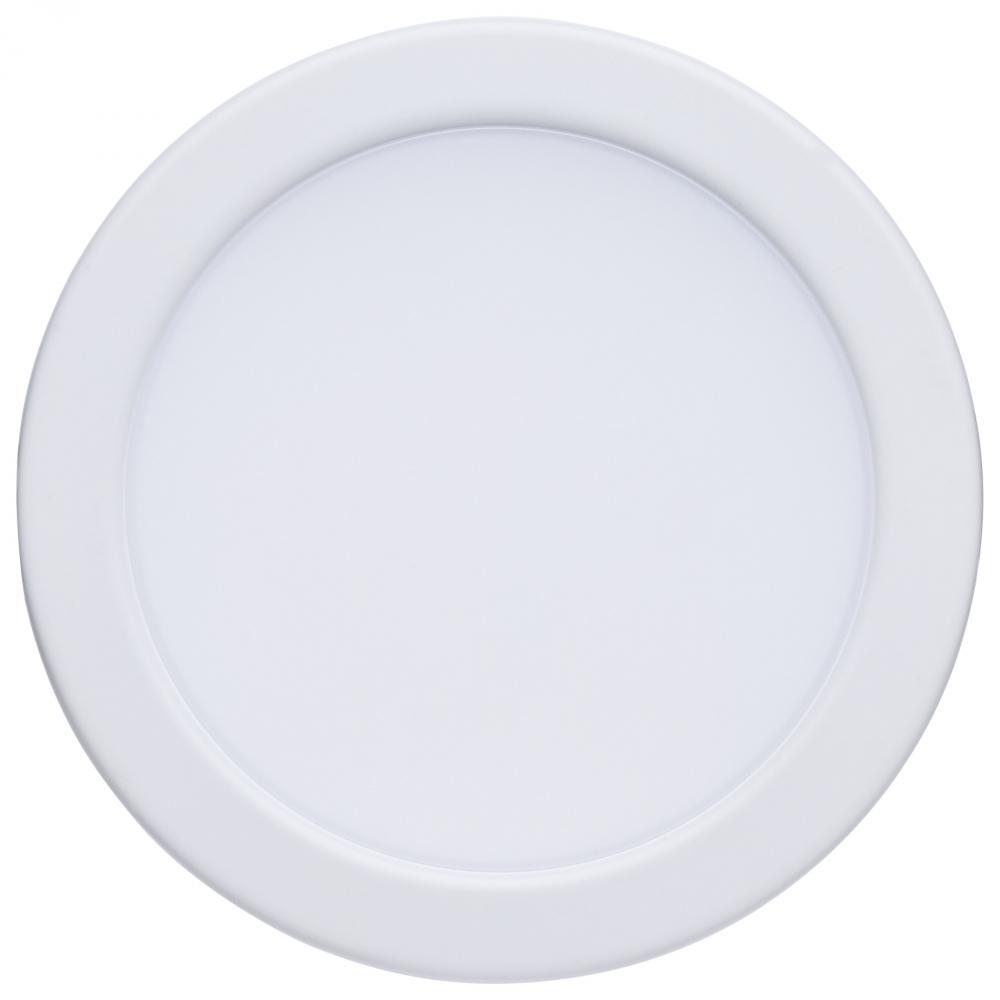

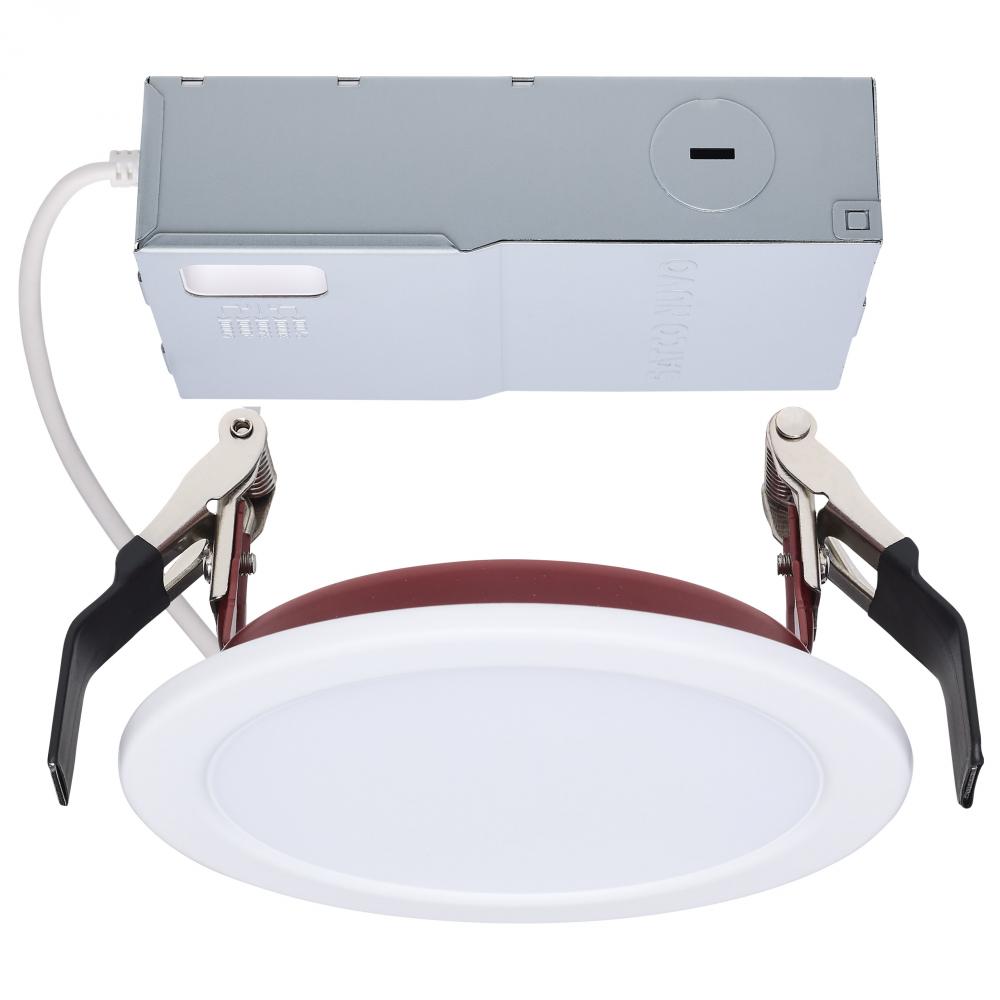

10 Watt LED; Fire Rated 4 Inch Direct Wire Slim Fit Flat Face Downlight; Round Shape; White Finish;
by Satco Products Inc. S11864R1
$32.57
On Sale
Normally $49.35 | You Save $16.78
Item Sales Info
Add To Wishlist
Compare Item
Email
Print
Availability
  • Manufacturer has 5560 items available.
Dimensions
Height: 0.88"
Width: 4.74"
Product Overview
10 Watt LED; Fire Rated 4 Inch Direct Wire Slim Fit Flat Face Downlight; Round Shape; White Finish; CCT Selectable; 120 Volts; Dimmable
 Standard Information
Category:
Recessed Ltg.
Subcategory:
Other Recessed Ltg.
Option:
Energy Star
LED
Prop 65
Refinement Options
Category:
Recessed
Sub Category:
Direct Wire
Style:
Specialty
Bulb Hours:
50000
Bulb Kelvin:
Warm White to Natural Light
Bulb Shape:
Integrated LED
Bulb Type:
LED
Diameter:
4.74
Dimmable:
Yes-Dimmable
Harmonized Codes:
9405.11.6010
Lumens:
820L
Ship Carton Height:
6.3
Ship Carton Length:
5.83
Ship Carton Width:
2.76
Warranty:
5-Years
Air Tight:
Yes
Amps:
0.083A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Spread:
110
CA Prop-65:
Lead
Carton Cubic Feet:
0.0587
Cartons Per Unit:
1
CCT Selectable:
Yes
CEC Terse:
Lawful for sale in California
Ceiling Aperture:
3.875 in. Cutout
Closet Rated:
Yes
Connection:

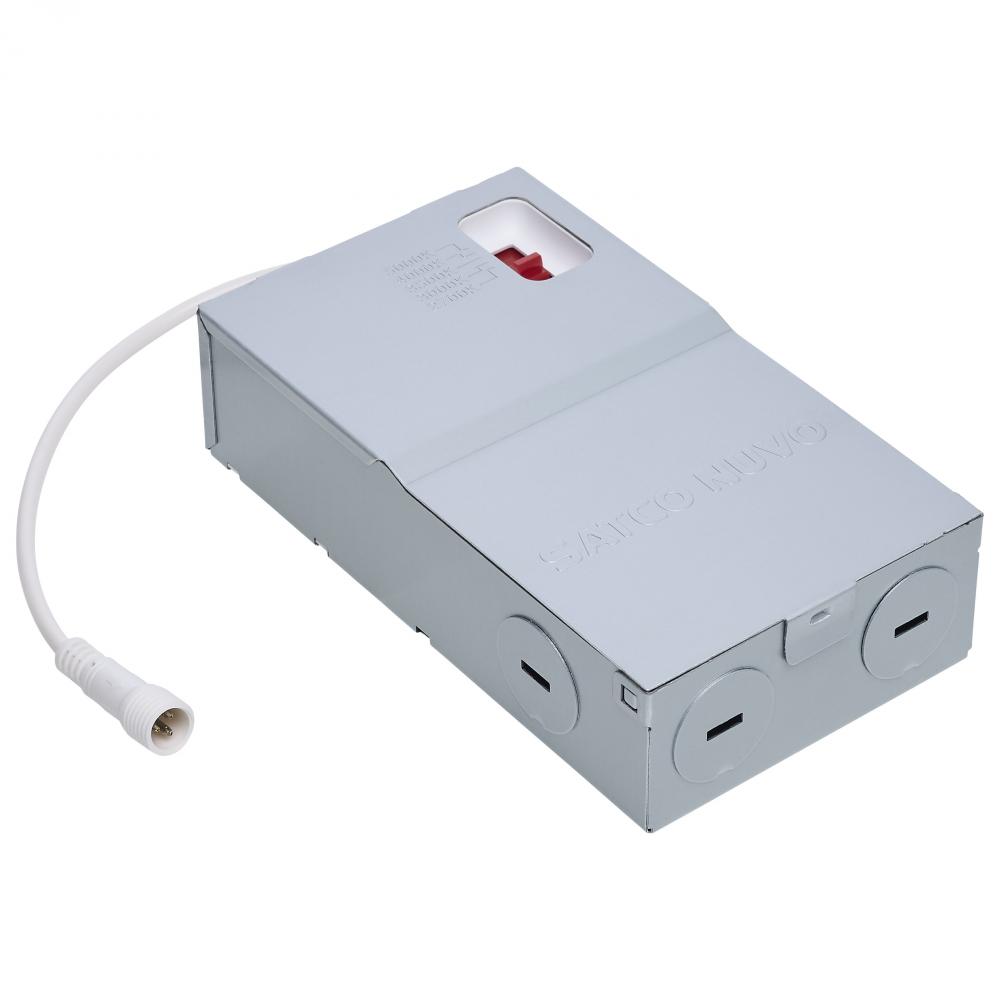

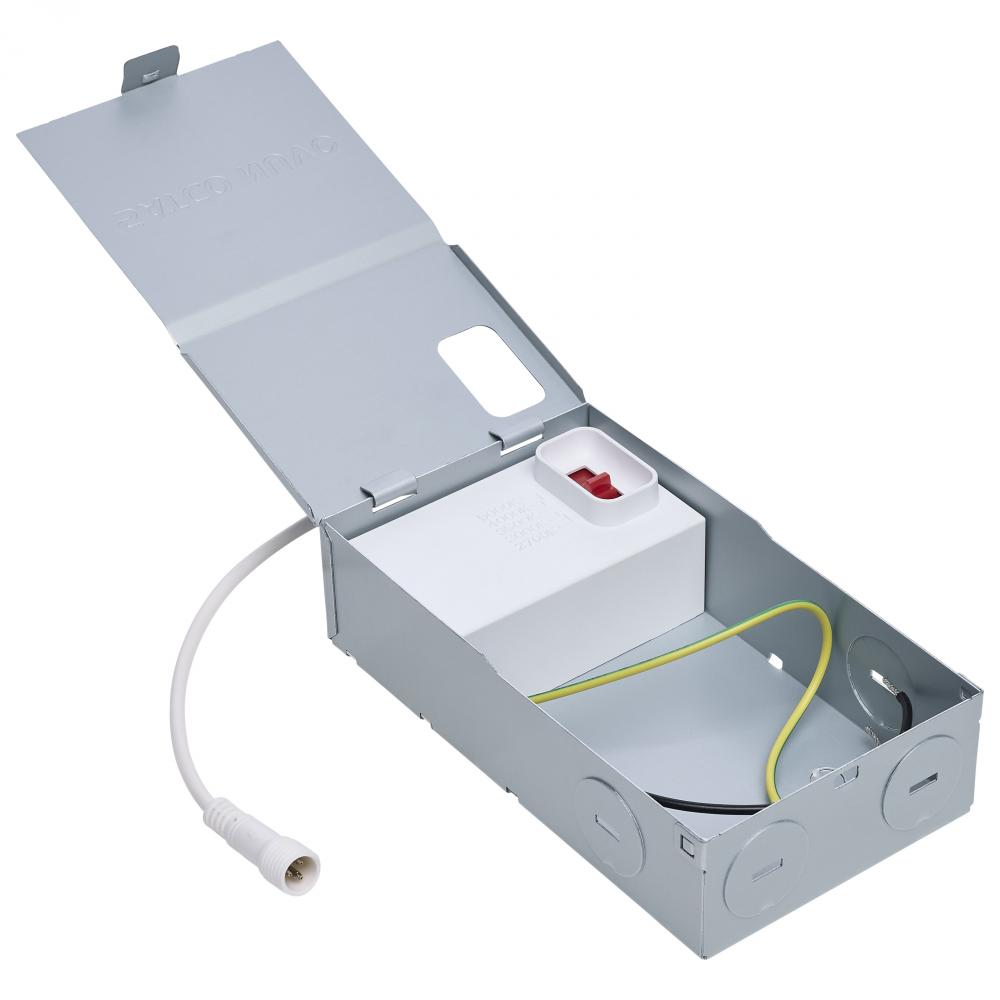

Hardwire
Country Of Origin:
Cambodia
CRI:
90+
Dark Sky Rated:
No
Dimmable Down To:
100 to 10 percent
Dimmable Function:
120V only
Dimming Type:
Phase cut
Efficacy:
82.00 LPW
ES Category:
Downlight Recessed
ES Unique ID:
4479602
FCC Compliant:
Yes
Feature 1:
Fire rated up to 2-hours
Feature 10:
5 Year Warranty
Feature 2:

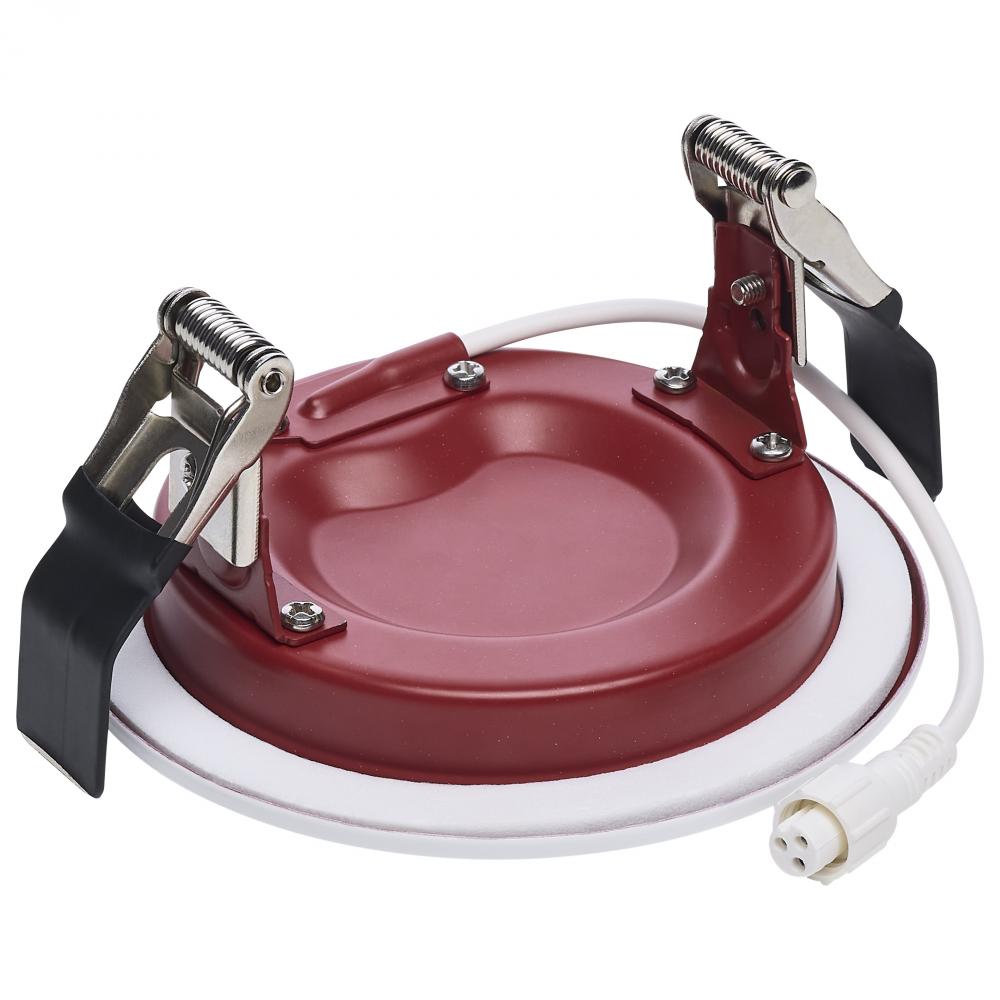

Red painted backplate for easy identification
Feature 3:

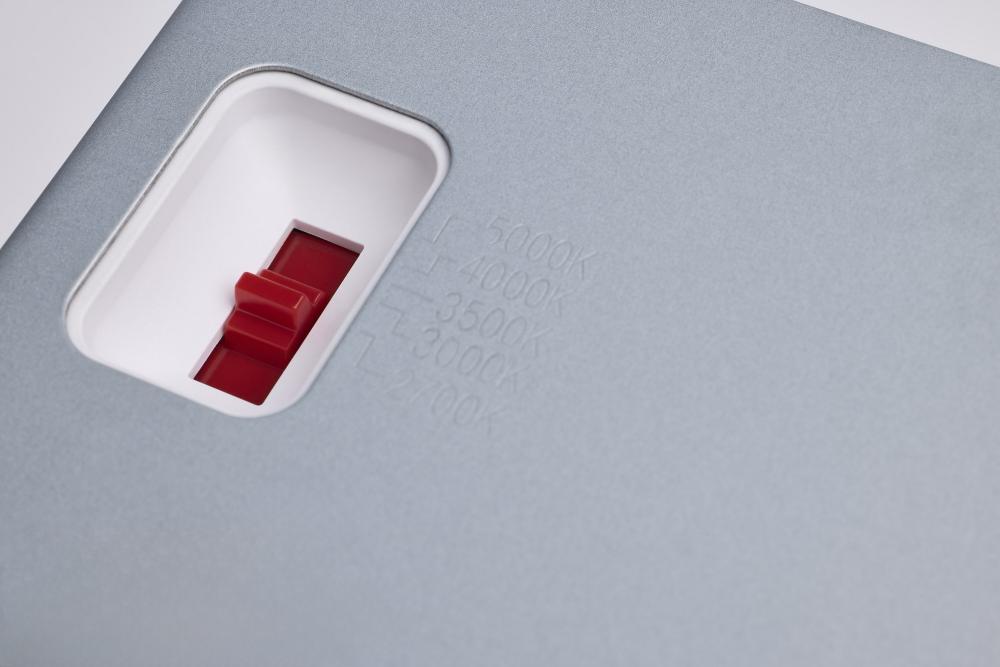

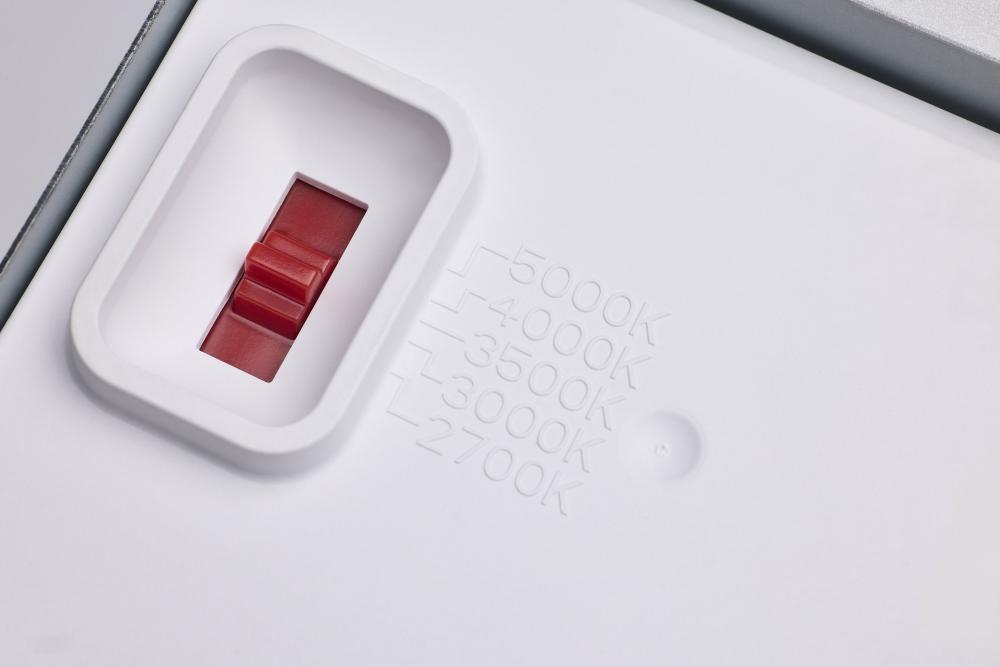

5 CCT Selectable
Feature 4:
90 CRI High Quality Illumination
Feature 5:

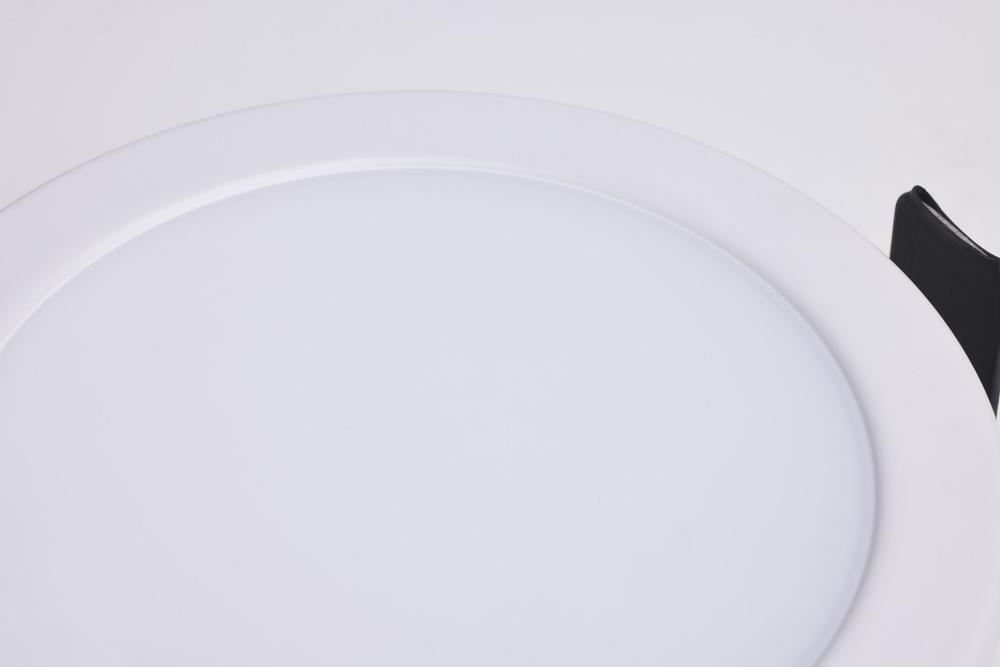

4" Flat Lens Model
Feature 6:
120 Volts with Phase-Cut Dimming
Feature 7:
Wet Location Rated
Feature 8:
IC Rated and AirTight
Feature 9:
50,000 Hour Functional Life
Finish Family:
White
Fixture shape:
Round
Flicker Free:
Yes
Has Emergency Battery:
No
IC Rated:
Yes
Incandescent Equivalent:
60W
Indoor Outdoor:
Indoor
JA8 Compliant:
Yes
Lens Finish:
Frosted
Lens Material:
Polycarbonate (PC)
Long Description:

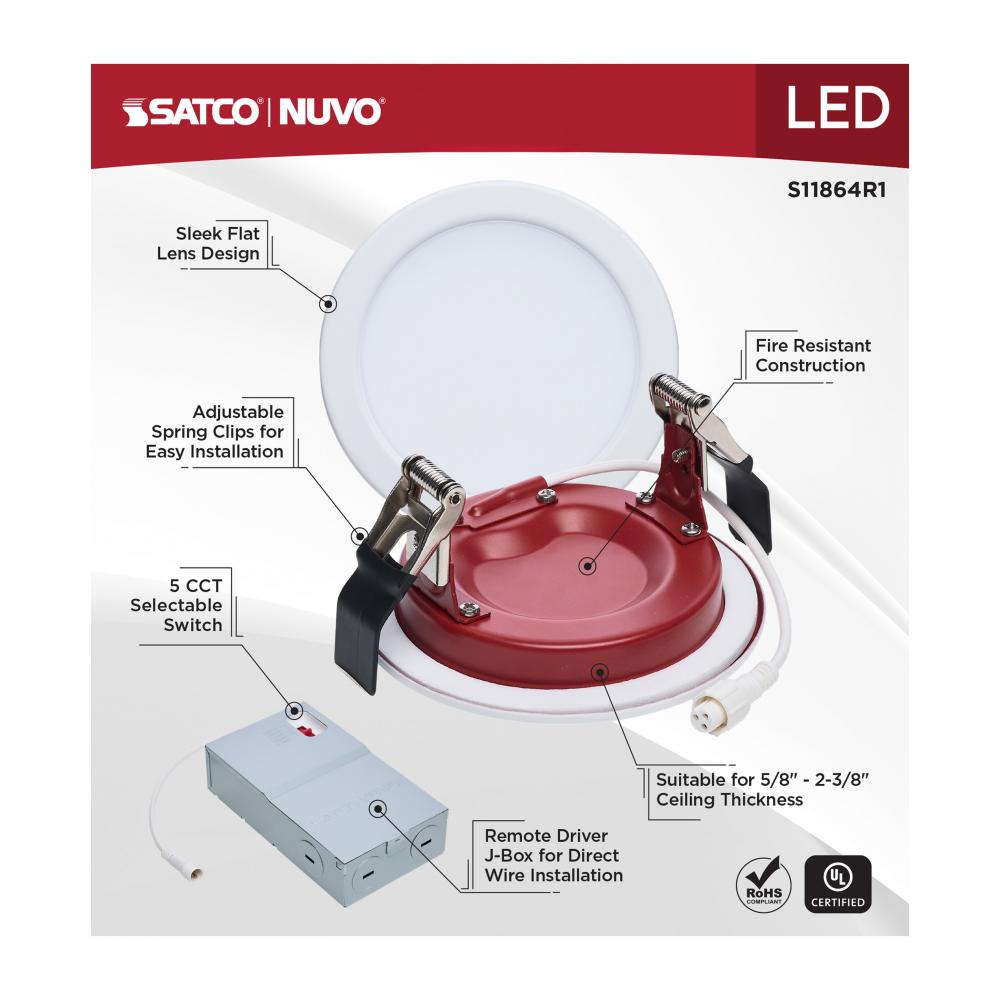

SATCO NUVO'S S11864R1 Fire Rated Recessed Downlight is engineered for fire-resistant ceiling construction and certified for 2-hour fire protection when installed in most floor-ceiling assemblies, including UL Designs L505, L511, L536, L538, L541, L556,
Material:
Steel
Max Drywall Thickness:
1.181 in.
Mounting Procedure:
Ceiling
NSF Approved:
No
Operating Frequency:
60Hz
Operating Temprature:
-20C (-4F) to +40C (+104F)
Order In Multiples Of:
1
Pack Type:
Color Box
Power Factor:
>0.9
Quantity In Pack:
1
Rated For Vapor Tight Fixture:
No
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO'S Fire Rated Recessed Downlights are engineered for use in fire-resistant ceiling construction and are certified for 2-hour fire protection when installed in most floor-ceiling assemblies, including UL Designs L505, L511, L536, L538, L541, L
Safety Listing:
cULus - Certified
SDS class:
LED_Fixture
Short Description:
10WLED/4/FR/CCT/SLF/RD/FL/RND
Sloped Ceiling Compatible:
No
Temperature (CCT):
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant:
Exempt
Title 24 Compliant:
Yes
Total Harmonic Distortion:
<20%
Trim Color:
White
Trim Material:
Steel
Wattage Selectable:
No
Weight Lb.:
1.03
Manufacturer Info
Manufactured By:
Satco Products Inc.
